翅片管分类及结构图

结构图

名称

工作温度 ( 不超过 )

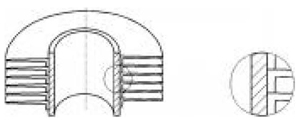

G型镶嵌管

"G" Embedded

400℃

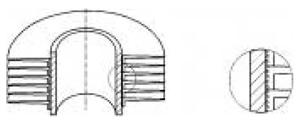

KL型滚花绕片管

Knurled "L"

250℃

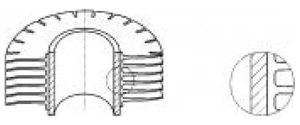

L型绕片管

"L" Wrap-on

120℃

LL型绕片管

Double "LL"

120℃

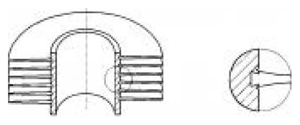

双金属轧片管

Bimetal Finned Tube

300℃


"EXTRUDED" type

width cold rolled extruded fins

"EXTRUDED SERRA TED" type

width cold rolled extruded fins with longitudinal notches and incling fin tips

"L" type

width metal strip wounded on the tube

"LL" type

width overfapped metal strip wounded on the core tube

"KL" type

width metal strip wounded on the core tube with knuried surface

"G" type

width metal strip wounded in the core tube groove
